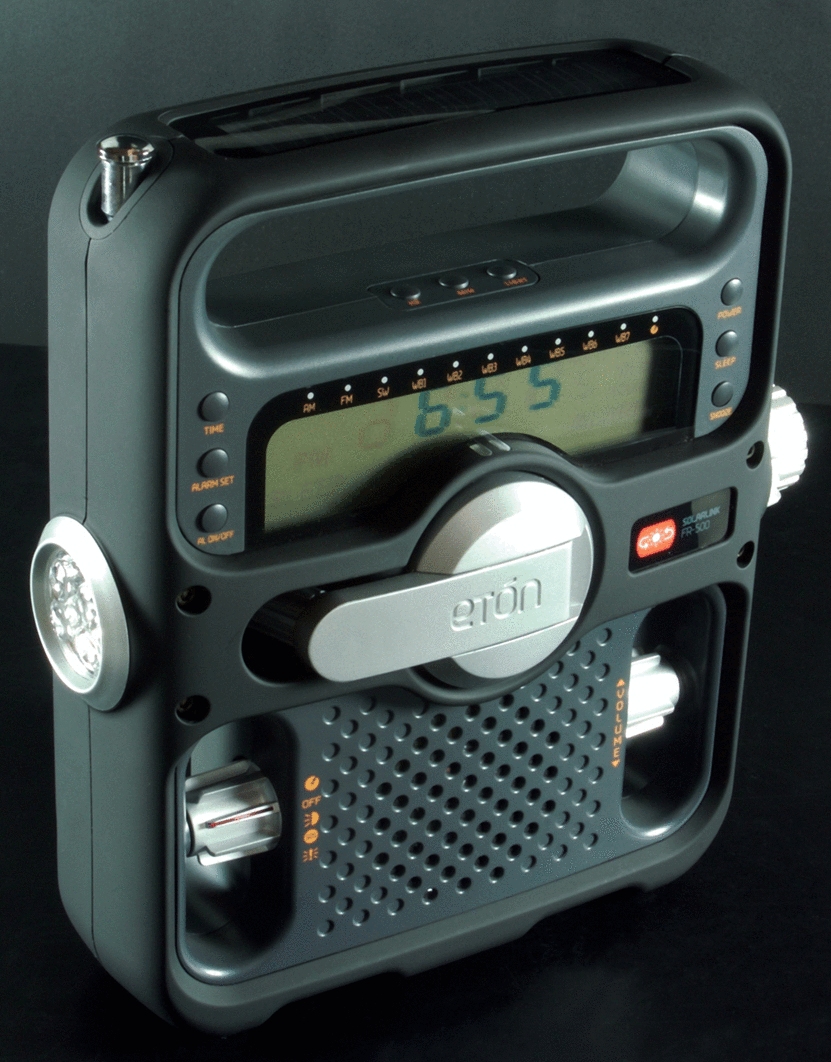

    <TD><H3>Eton FR500 (American Red Cross)</H3>
      <A HREF="Photos/Eton_FR500.jpg">
       <IMG SRC="Photos/Eton_FR500.jpg" TITLE="Eton FR500" WIDTH="800" BORDER="1" /></A>
      <TABLE BORDER="1" STYLE="font-size: medium;">
        <TR bgcolor="#CCFFFF">
          <TD><STRONG>Type:</STRONG></TD>
          <TD>Weather Alert Receiver</TD>
        </TR>
        <TR>
          <TD><STRONG>Frequency Range:</STRONG></TD>
           <TD><STRONG>AM:</STRONG> 520-1700 KHz
           <BR /><STRONG>SW:</STRONG> 580-12200 KHz
           <BR /><STRONG>WB:</STRONG> 162.400-162.550 MHz
           <BR /><STRONG>FM:</STRONG> 88-108 MHz</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Modes:</STRONG></TD>
          <TD>AM/FM/WFM</TD>
        </TR>
        <TR>
          <TD><STRONG>Memory Channels:</STRONG></TD>
          <TD>NOAA: 7 Channels</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Search Banks:</STRONG></TD>
          <TD>N/A</TD>
        </TR>
        <TR>
          <TD><STRONG>Priority Channels:</STRONG></TD>
          <TD>N/A</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Scan Rate:</STRONG></TD>
          <TD>N/A</TD>
        </TR>
        <TR>
          <TD><STRONG>Search Rate:</STRONG></TD>
          <TD>N/A</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Frequency Steps (kHz) :</STRONG></TD>
          <TD>N/A</TD>
        </TR>
        <TR>
          <TD><STRONG>Scan Delay:</STRONG></TD>
          <TD>N/A</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Voltage:</STRONG></TD>
          <TD>1: Dynamo/Hand Crank (Charges Built-in Ni-MH Battery)
          <BR />2: 4.5 VDC (3x AAA Batteries)
          <BR />3: AC Adaptor
          <BR />4: Solar Power (Charges Built-in Ni-MH Battery)</TD>
        </TR>
        <TR>
          <TD><STRONG>Current Drain:</STRONG></TD>
          <TD>Max ? mA</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Aerial Input:</STRONG></TD>
          <TD>? ohms</TD>
        </TR>
        <TR>
          <TD><STRONG>Dimensions (W*H*D):</STRONG></TD>
          <TD>196.9mm x 215.9mm x 63.5mm</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Weight:</STRONG></TD>
          <TD>1.9 lbs. and 0.86 kg</TD>
        </TR>
        <TR>
          <TD><STRONG>Manufactured:</STRONG></TD>
          <TD>20xx-20xx</TD>
        </TR>
        <TR bgcolor="#E6E6E6">
          <TD><STRONG>Other:</STRONG></TD>
          <TD><BR /></TD>
        </TR>
        <TR>
          <TD><STRONG>Related Documents:</STRONG></TD>
          <TD><A HREF="../../../- PHP -/1. Manuals/Eton/Eton_FR500_Manual.php">Owner's Manual</A> (391 kb)</TD>
        </TR>
      </TABLE><BR />
      <A HREF="Photos/Eton_FR500_.jpg">
       <IMG SRC="Photos/Eton_FR500_.jpg" TITLE="Eton FR500" WIDTH="800" BORDER="1" /></A></TD>
